Tamiya PzKpfw 38(t) Ausf E/F

Build review of the 1/35 scale armor kit with great detail on the tank but not on the figure
RELATED TOPICS: ARMOR
FSMWB0320_Tamiya_Panzer_38t_box
FSMWB0320_Tamiya_Panzer_38t_02
FSMWB0320_Tamiya_Panzer_38t_03
FSMWB0320_Tamiya_Panzer_38t_04
FSMWB0320_Tamiya_Panzer_38t_05
FSMWB0320_Tamiya_Panzer_38t_06
FSMWB0320_Tamiya_Panzer_38t_07
The Czechoslovakian-designed LT vz. 38 tank was considered superior to the German Panzer I and II, so it was kept in production after the annexation of Czechoslovakia in 1938. More than 1,400 were built and they served on the frontlines of German offenses in France, Poland, and Russia until made obsolete by larger more modern tanks.

Tamiya’s Panzer 38(t) features link-and-length tracks, posable hatches, a photo-etched metal (PE) engine screen, a commander figure, optional personal equipment, and markings for two vehicles, one from the 19th Panzer Division, the other from the 7th Panzer Division, both in Russia.

The lower hull consists of five parts with the instructions indicating the correct order of assembly. The upper hull parts, including the transmission cover and turret ring, fit perfectly. Superglue spread with a toothpick secured the PE engine grille.

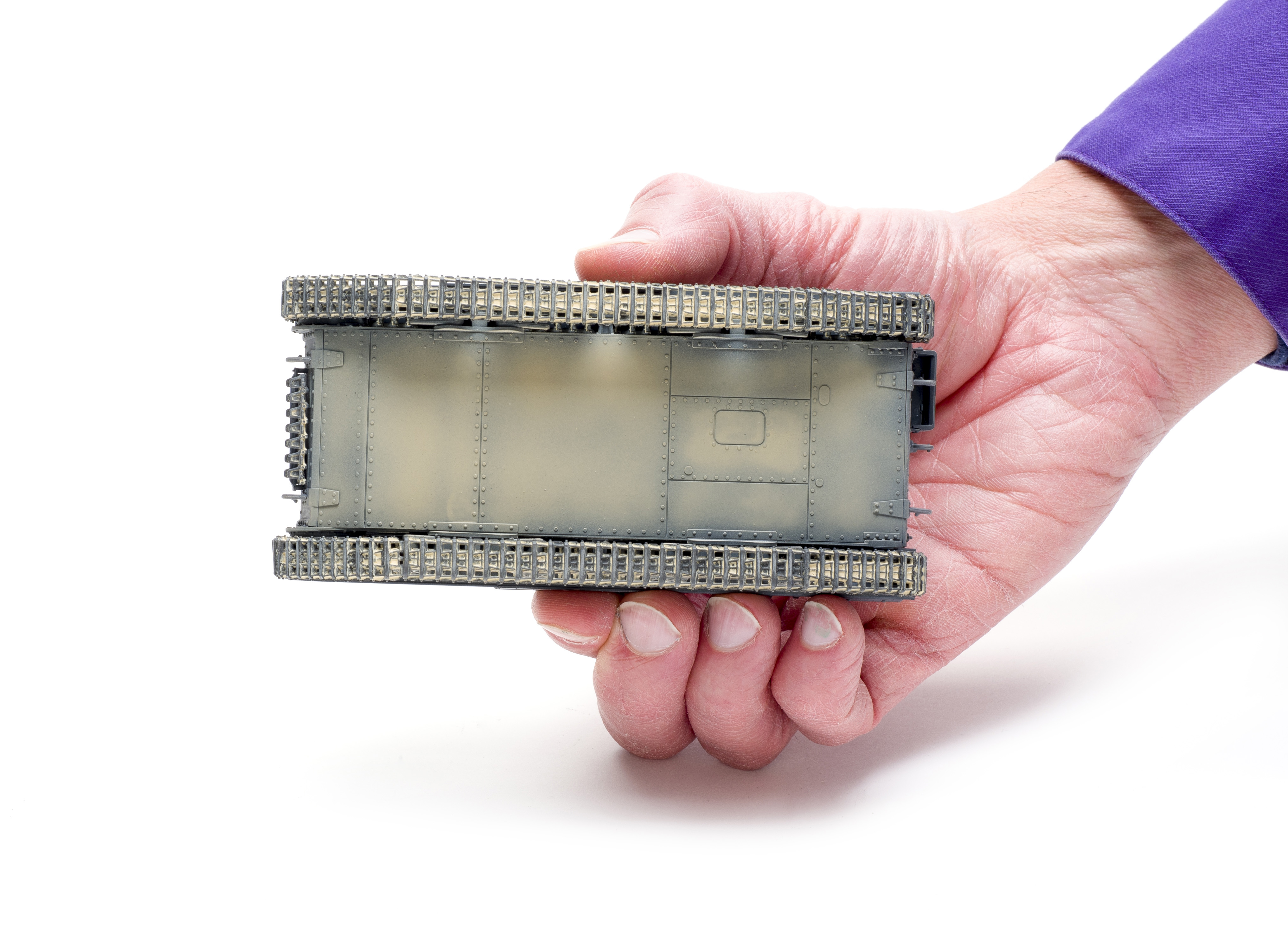

The suspension comprises leaf springs and separate suspension arms. After painting and weathering the lower hull, suspension, and road wheels, I installed the link-and-length tracks in the indicated order using Tamiya Extra Thin Cement, which provided enough working time to allow for adjustments.

I fit the fenders and engine hatches next. Pay attention to the marking option you are building as one of the tanks omits the bow machine gun and has a blanking plate in its place. I bored out the hull machine gun muzzle with the tip of a No. 11 blade to improve realism.

After fitting external fuel cans and toolboxes, I painted the upper hull.

Since I planned on leaving the commander’s hatch open, I painted the inside of the turret and part of the cannon flat white. Before assembling the turret, I painted the gun’s breech and machine gun gunmetal. The turret sides, mantle, and top were added at this time. Take care when building the commander’s cupola. After painting the turret I added helmets and canteens to the top edge as seen in wartime photos.

Choosing the marking for a 19th Panzer Division, I applied the decals which went down nicely without solvent.

After painting the figure, I placed him in the cupola and called the little tank done.

Good engineering and great fits made this an easy and quick build; I had the model finished in 24 hours.


Note: A version of this review appeared in the March 2020 issue.
